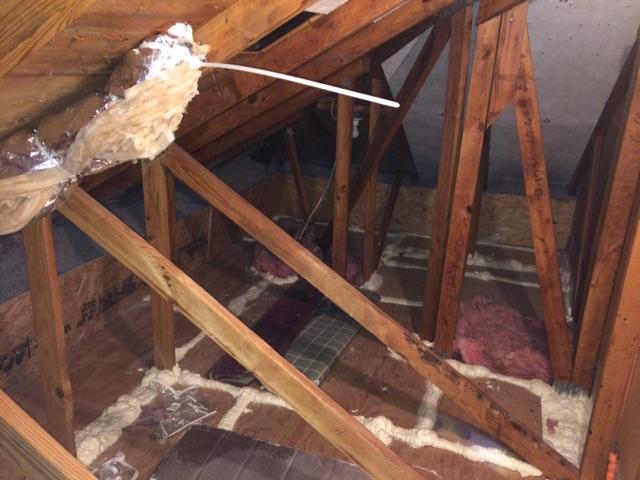

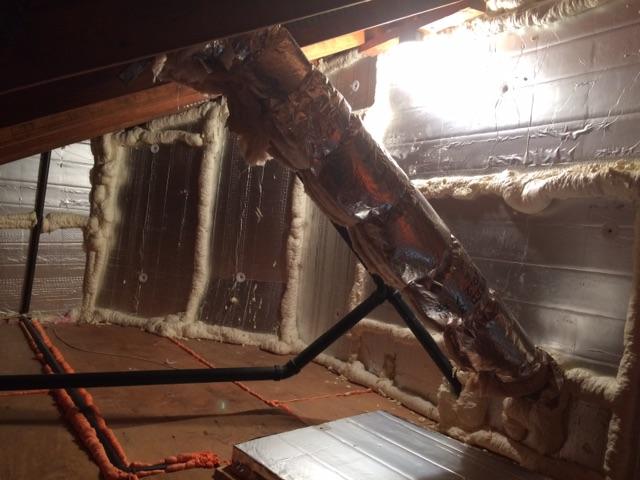

Walls protected by 2" reflective radiant barrier foam board, and air sealed by closed cell spray foam. Attic deck dense packed with cellulose to insulate room below. Bathroom fan exhaust encapsulated by R-8 insulation.

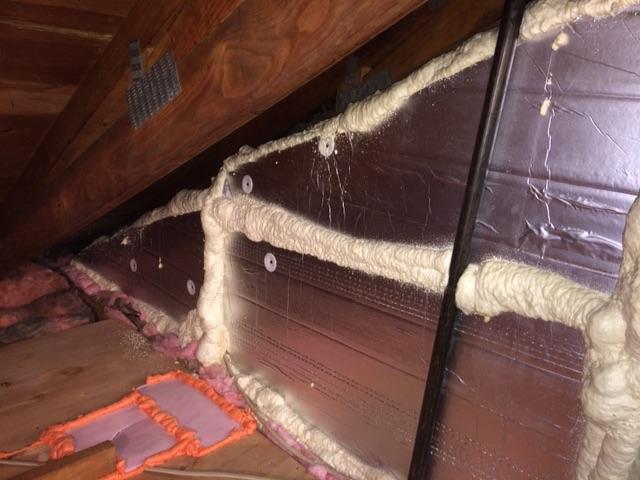

Reflective radiant barrier foam board covers wall bordering bedroom inside house. Air sealed to ensure no air passes through into the bedroom.

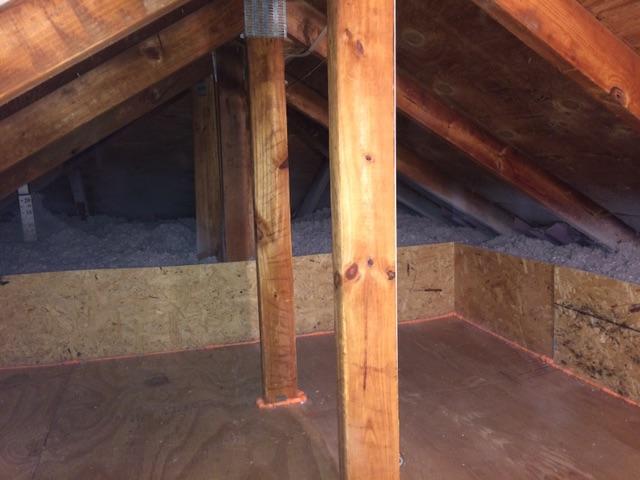

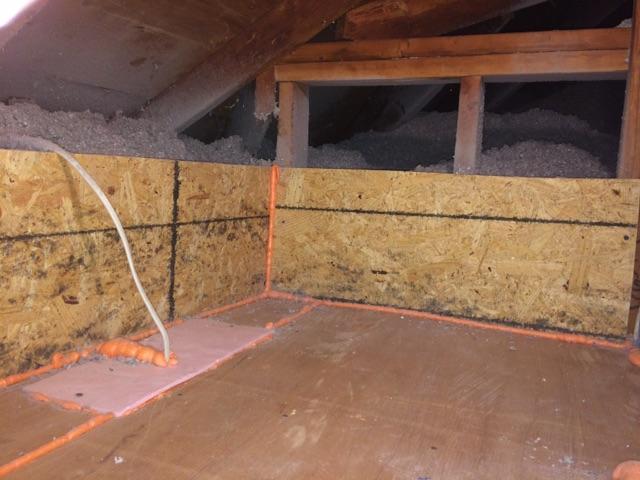

Dams are built in the second attic to separate cellulose from attic deck. All holes are air sealed to ensure they do not leak air.
Soffit vents are installed to properly vent the attic with outside air to prevent the build up of moisture.
Cellulose is sprayed to maximize the R-value of the insulation on the ceiling of the rooms below. Cellulose is also densely packed under the plywood walking deck to ensure that area is insulated as well.
Meticulous Air Sealing
EVERY crevice is filled on this wall plate to ensure that no outside air can move into your conditioned space, keeping you comfortable.

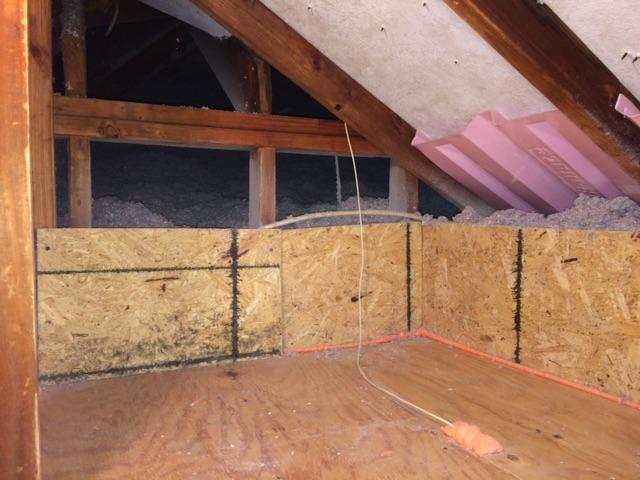

The third attic received the same treatment as the second, cellulose, air sealing and cellulose densely packed under the plywood deck.

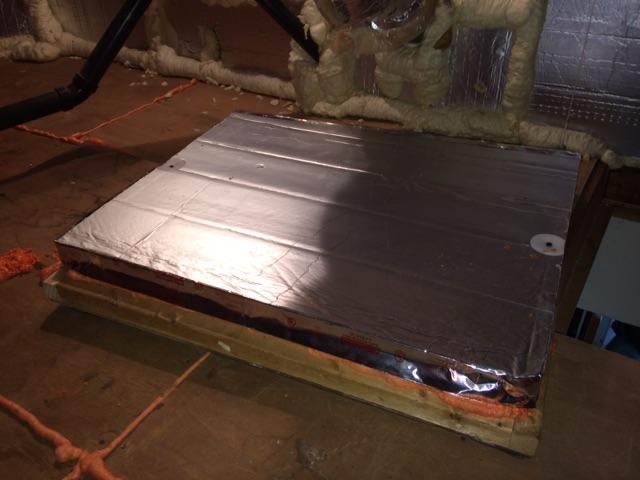

Reflective Foam Hatch
The attic access hatch was fitted with 2" reflective radiant barrier foam board to ensure that the opening did not allow cool air into the home.

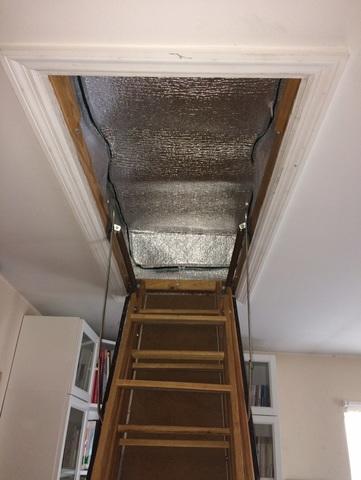

Attic Stair Cover
The attic stair hatch was insulated with a reflective cover to ensure the opening did not leak air.
